neutrik > Products > NAC3MP-HC
NAC3MP-HC

NAC3MP-HC

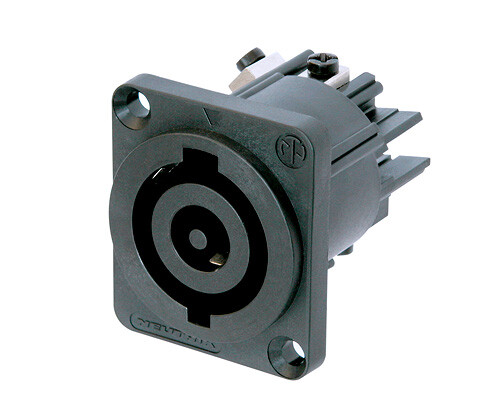

powerCON 32 A chassis connector, power-in

The 32 A powerCON is an extremely robust and reliable locking single phase AC appliance cable connector for high current capacity (32 A rated). It is conceived as a non-standardized 3 pole connection system without breaking capacity to serve the needs of high power distribution systems and supplies for professional audio and lighting equipment and installations. The connectors comprise of contacts for phase, neutral and protective earth (ground) conductors rated for currents up to 32 A and for voltages up to 250V.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Technical Information
Download Data Sheet

Features & Benefits

  • 250 V ac, 32 A single-phase (for ambient temperatures up to 35°C)
  • Premating contact for protective earth
  • Fast and easy locking system to prevent unintentional disengagement
  • Wiring with screw-type terminals for wires 2.5 to 6.0 mm² (AWG 14 - 10)
  • Extremely robust and reliable
  • VDE, UL, cUL and JET approved
  • IEC 62368-1 compliant up to 4000 W

Downloads

  • Drawing NAC3MP-HC
  • Drawing NAC3MP-HC
  • 3D File NAC3MP-HC
  • Product Guide - powerCON and Circular Connectors
  • Assembly Instruction - powerCON 32 A
  • VDE Certificate powerCON 32 A
  • UL Certificate of Compliance powerCON 32A
  • CB Certificate NAC3MP-HC, NAC3FC-HC

Links

  • UL Certificate (ECBT2.E135070)
  • cUL Certificate (ECBT8.E135070)

Technical Information

Product
Title NAC3MP-HC
Connection Type powerCON
Gender male
Electrical
Contact resistance ≤ 3 mΩ
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance > 10 GΩ (initial)
Rating Europe EN 61984: 32 A 250 V AC
Rating USA UL 1977: 32 A 250 V AC
Maximal Wattage according to IEC 62368-1 4000 W rms
Mechanical
Lifetime > 1000 mating cycles
Wiresize 2.5 - 6 mm²
Wiresize 14 - 10 AWG
Wiring screw terminals
Locking device Quick Lock
Material
Contact plating 4 µm Ag
Contacts Bronze (CuSn0.2)
Locking element Steel Ck67
Shell Polyamide (PA 6.6 25 % GR)
Environmental
Flammability UL 94 V-0
Protection class IP 20 (mated)
Safety Requirements EN/IEC 61984
Solderability Complies with IEC 68-2-20
Temperature range -25 °C to +70 °C
