neutrik > Products > NA3FJ

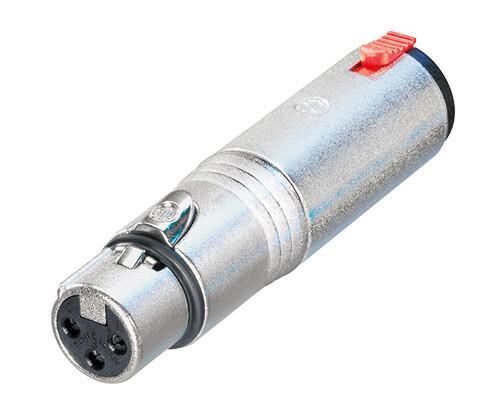

NA3FJ

NA3FJ

3 pole XLR female - Stereo 1/4" locking jack (tip, ring, sleeve contact)

Download Data Sheet
Selection of topics
Features & Benefits Downloads Technical Information
Download Data Sheet

Features & Benefits

  • Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
  • Professional look and compact space saving design, based on the XX Series
  • Rugged diecast shell for best reliability

Downloads

  • Drawing NA3FJ
  • Drawing NA3FJ
  • 3D File NA3FJ
  • Product Guide - Section Accessories

Technical Information

Product
Title NA3FJ
Connection Type Adapter
Electrical
Contact resistance ≤ 3 mΩ (XLR)
Contact resistance ≤ 6 mΩ
Dielectric strength 1.5 kV dc / > 1 kVdc (XLR/Jack)
Insulation resistance > 2 GΩ
Mechanical
Wiresize
Locking device Latch lock
Material
Contact plating 2 µm Ag
Contacts Bronze (CuBe2) (jack)
Insert Polyamide (PA 6.6 30 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating gal Cu/Ni
Environmental
Temperature range -20 °C to +65 °C
