NA-4I4O-AES72

Download Data Sheet

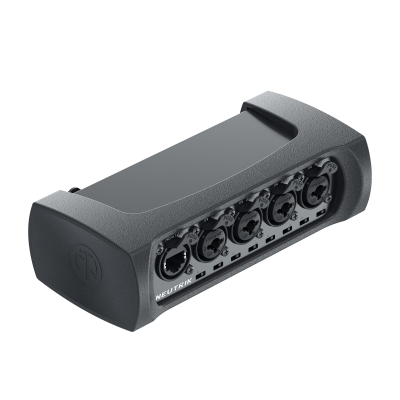

The NA-4I4O-AES72 is a 4-channel stagebox for transmitting microphone levels, analog line levels, AES3, DMX
or even intercom via one single CAT cable. The device has male and female XLRs in the same housing and can be used directly as a splitter for monitoring. An additional etherCON serves as feedthrough and allows further looping of the signals to other devices.
A ground lift at each input prevents possible ground loops.
In addition, each input connector offers the possibility to invert the signal.

Features & Benefits

Robust & compact design for demanding environments
Combined Inputs & Outputs for complete flexibility in the application

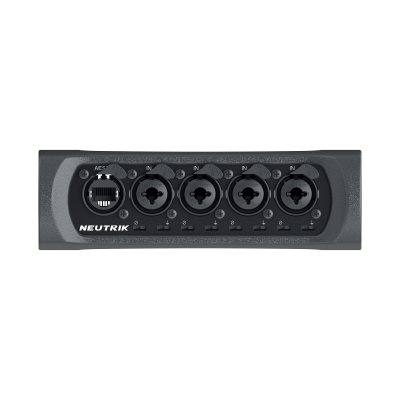

Combo XLR/Jack Inputs
Assignment according to AES72 (Type 4E) to use standardized RJ45 connectors and quad twisted pair cables for analog audio connections
Ground lifting switch at each input to prevent possible ground loops
Phase inversion switch at each input offers the possibility to invert the signal
An additional etherCON serves as feedthrough and allows daisy chaining of the signals to other devices
Completely dark appearance for optimal usage on stage

Downloads

3D Drawing NA-4I4O-AES72

stp - 32.24 MB

Drawing NA-4I4O-AES72

pdf - 1.4 MB

Drawing NA-4I4O-AES72

dxf - 16.28 MB

User Manual NA-4I4O-AES72

pdf - 1.33 MB

NEUTRIK Audio Network Solutions

pdf - 10.52 MB

EU Declaration of Conformity RoHS3

pdf - 285.44 KB

EU Declaration of Conformity REACH235

pdf - 281.19 KB

Technical Information

Product
Title	NA-4I4O-AES72
Product family	Stageboxes
Device type	Analog

Electrical
Input channels	4 x Combo XLR/Jack female

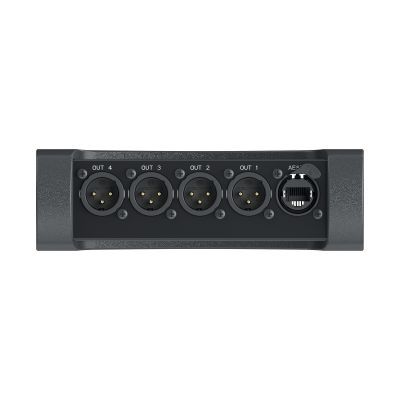

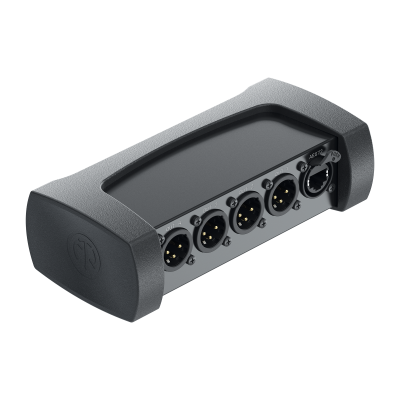

Output channels	4 x XLR male
Interconnection channels	2 x RJ45 / AES72 Type 4E
Signal compatibility	mic level line level analog AES3 DMX other COM signals
Cable requirement	min. shielded CAT5 cable
Rated Voltage	max. 48 VDC
Rated Current	max. 500 mA

Mechanical
Weight	0,45 kg / 1,003 lbs
Dimensions with rubber protection	L: 164 mm / 6.4 inches W: 82 mm / 3.2 inches H: 51 mm / 2.0 inches
Dimensions without rubber protection	L: 151 mm / 5.9 inches W: 66 mm / 2.6 inches H: 41 mm / 1.6 inches
