neutrik > Products > MAJ-501
MAJ-501

MAJ-501

*** DISCONTINUED ***

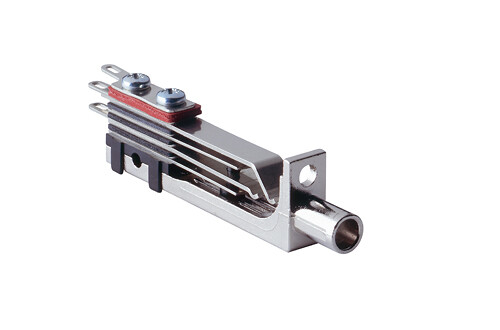

Bantam jack, standard solder lugs

Download Data Sheet
Selection of topics
Features & Benefits Downloads Technical Information
Download Data Sheet

Features & Benefits

  • 5-point Bantam jack socket (Tip, Ring, Sleeve, Tip Normal, Ring Normal)
  • Rigid nickel plated die-cast frame, featuring considerable frame strength eliminating physical distortion when plug is inserted
  • Nickel-silver spring contacts, palladium plated switch contacts

Downloads

  • Product Guide - Section Patch Panels

Technical Information

Product
Title MAJ-501
Connection Type Jack
Electrical
Contact resistance < 20 mΩ (spring contact)
Contact resistance < 15 mΩ (switch contact)
Dielectric strength > 0.5 kVdc
Frequencyrange DC to > 50 MHz
Insulation resistance > 1 GΩ @ 500 V dc
Mechanical
Insertion force < 30 N
Withdrawal force > 5 N
Lifetime > 20000 mating cycles
Wiresize
Wiring Solder lug
Material
Shell diecast alloy
Contacts Palladium plated (switch contacts)
Environmental
Standard compliance MIL-J-641/19
Temperature range -30 °C to +80 °C
