neutrik > Products > FIBERFOX > FIBERFOX 2CH > FIBERFOX 2CH Cable
NKO2M3-FX-0-050_open

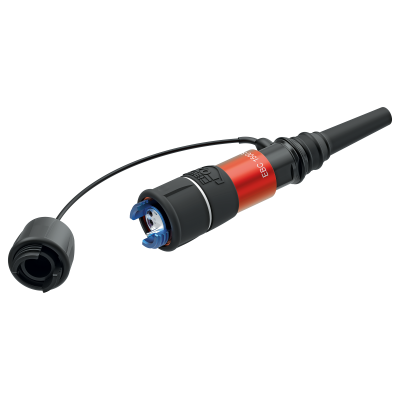

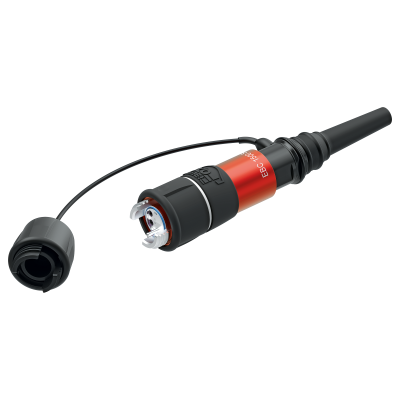

FIBERFOX 2CH Cable

The FIBERFOX 2CH Cable connector is an expanded beam multimode hermaphroditic connector suited for a vast array of applications, including Lighting, Network, PA, Video, Broadcast, Defense & Government, Railway and Petrochemical. The innovative design ensures its ability for deployment in the toughest environments where constant performance and total reliability are critical. The connector is designed according to the MIL-DTL-83526 standard and fits to all other connectors with this standard.

Benefiting from the expanded beam technology and the precision optical alignment the system creates high immunity against dust, mud, liquids and other contaminations. The FIBERFOX hermaphroditic coupling eliminates the need for adaptors and female and male mating halves. The cable connector comes pre-assembled and is not available as a single component. The finished cable is available in standardized lengths and is packed either on a drum or airspool.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Technical Information
Download Data Sheet

Features & Benefits

  • Heavy-duty, connectors IP68 (even unprotected)
  • Wear-free connectors, > 10.000 mating cycles without any maintenance
  • No special cleaning or measurement tools required
  • Cables are prolongable direct, no couplers required
  • Ø = 5mm, PUR flame-retardant, halogen-free, bent tolerant
  • Ready-made up with connectors EBC1502

Downloads

  • Drawing NKO2M3-FX
  • Drawing NKO2M3-FX
  • 3D File NKO2M3-FX
  • Handling Instruction - FIBERFOX
  • Product Folder FIBERFOX
  • Cable datasheet - FIBERFOX 2CH
FIBERFOX_27500745_o_cable_rm_02

CABLE 2CH

Code Description
NKO2M3-FX-0-005
FIBERFOX MM 2CH 5m OM3 airspool
NKO2M3-FX-0-010
FIBERFOX MM 2CH 10m OM3 airspool
NKO2M3-FX-0-020
FIBERFOX MM 2CH 20m OM3 airspool
NKO2M3-FX-0-050
FIBERFOX MM 2CH 50m OM3 airspool
NKO2M3-FX-0-100
FIBERFOX MM 2CH 100m OM3 airspool
NKO2M3-FX-0-150
FIBERFOX MM 2CH 150m OM3 airspool
NKO2M3-FX-2-050
FIBERFOX MM 2CH 50m OM3 cable reel
NKO2M3-FX-2-100
FIBERFOX MM 2CH 100m OM3 cable reel
NKO2M3-FX-2-150
FIBERFOX MM 2CH 150m OM3 cable reel
*Customized Cable Solutions with different length up on request.



Technical Information

Product
Title FIBERFOX 2CH
Gender Hermaphroditic
Mechanical
Tensile Strength 1'800N
Compressive load 50'000N
Lifetime >10000 mating cycles
Free fall Resistance 500 falls onto concrete from 1.2M height
Bump resistance 4000 bumps @ 40g acceleration
Vibrational Sinusoidal 10-500Hz, 0.75 amplitude @ 10g acceleration
Material
Boot Rubber (EPDM)
Insert Steel
Shell Aluminium
Shell plating Hard anodize
Strain relief Brass
Environmental
Flammability UL 94 V-0
Protection Class IP68 (6m water depth and 30min) mated and unmated
Compatibility MIL-DTL-83526
Temperature Range -40°C to + 70°C
Optical
Insertion loss Typ. 0.7dB per Connector / Max. 1.0dB per Connector
Optical connector EBC
Optical wiring ISO / IEC 11801 ISO / IEC 11801
Mobile cable
Colour Black, shinny
Core diameter Multimode 50µm
Cladding diameter 125 µm
Comment PUR, halogen free
minimal bending radius 5 cm
Number of fibers 2
Cable rentation Aramid yarn
Weight 23kg/km
Overal diameter Ø 5 cm
