neutrik > Products > DIE-R-BNC-PJ
DIE-R-BNC-PJ

DIE-R-BNC-PJ

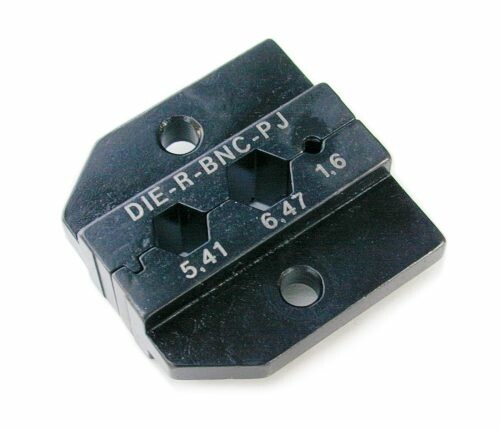

Crimp tool die for HX-R-BNC

Pin crimping: 1.60 mm
Shield and jacket: HEX crimp 6.47 mm (A), 5.41 mm (B)

Download Data Sheet
Selection of topics
Downloads Technical Information Accessories
Download Data Sheet

Downloads

  • Drawing DIE-R-BNC-PJ
  • Drawing DIE-R-BNC-PJ

Technical Information

Product
Title DIE-R-BNC-PJ
Mechanical
Crimp size 5.41, 6.47 Hex crimp (shield) acc. IEC 60803 (die designation D, E)
Crimp size (pin) 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Wiresize

Accessories

HX-R-BNC
HX-R-BNC
