opticalCON MTP® 24 X-TREME
The opticalCON MTP® cable connector offers 24 optical channels (multimode PC or single mode APC), based on conventional and proven MTP® connectivity technology, protected within a rugged and durable metal housing. A unique feature is the automatically operated protective shutter, which safeguards the fiber from dust and dirt when unmated.
Furthermore, the opticalCON features the proven push-pull locking mechanism and excellent strain relief.
The cable connector is pre-assembled and not available as a single component. The assembled cable, including an additional protective cap, is offered in various lengths and is delivered in a case, on a drum, or coiled.
- opticalCON X-TREME cable for demanding applications such as touring/rental or outside broadcast
- opticalCON multimode fiber cables with laser-optimized and bend-insensitive OM3 fibers

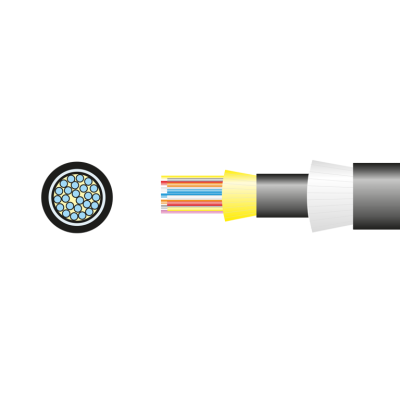

- Cut-resistant and rodent-protected double-jacket glass yarn armored cable construction
- Robust 24-channel fiber optic system
- Suitable for point-to-point multi-channel routing
- Innovative spherical shutter ensures low maintenance effort
- Dust and water resistant according to IP65 protection class when mated
Technical Information
| Product | |
|---|---|
| Title | opticalCON MTP® 24 X-TREME Cable Assembly |
| Electrical | |
|---|---|
| Cable retention | 500 N |
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime (typ.) | 2'500 mating cycles |
| Wiresize | |
| Locking device | Push-Pull |
| Material | |
|---|---|
| Boot | Rubber (EPDM) |
| Bushing | Zinc diecast (ZnAl4Cu1) |
| Insert | Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Strain relief | Brass (CuZn39Pb3) + PU, Ni |
| Environmental | |
|---|---|
| Temperature range | -40 °C to +75 °C |
| Protection class | in mated condition IP65 |
| Optical data | |
|---|---|
| Insertion attenuator | < 0.9 dB / connection |
| Optical connector | MTP® ELITE female |
| Optical wiring | Method A |
| Mobile cable | |
|---|---|
| Colour | black, matte |
| Core diameter | Single 9 µm, Multimode µm OM3 |
| Sleeve diameter | 125 µm |
| Coat | PUR |
| Minimum bending radius | 8.0 cm |
| Number of fibers | 24 |
| Strain relief | Aramid yam |
| Weight | 103 kg/km |
| Overal diameter | 8.0 mm |
