I Combo

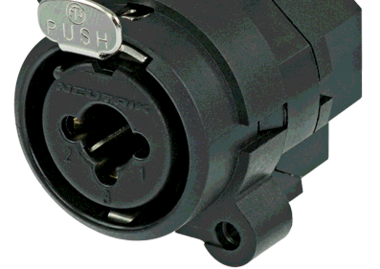

Combo I Series

First XLR / jack hybrid panel mount connector combining a 3 pole XLR receptacle and mono or stereo ¼" phone jack in one XLR housing. Space saving combination of 2 connectors in one plastic housing. Available in nonswitching and normalling versions with horizontal or vertical pcb mount or soldering termination.
Many equipments have two input connectors (balanced XLR and unbalanced jack). But in almost all cases only one input is used at a time, so the Combo reduces panel space, costs and simplifies pcb design.

Termination
V = vertical pcb mount, straight pins
H = horizontal pcb mount, angled pins
S = Solder contacts

Locking mechanism
 -0 = no latch, retention spring
no suffix = Latch lock

Grounding
Separate ground contact to mating connector shell and front panel, including switching ground version

Mounting
Rear panel mount

Panel fastening
Self-tapping PLASTITE screw with thread 2.9x1.06 and of tri-rondular configuration (A-screw)
(PLASTITE® is a registered trademark of SFS Unimarket)

Panel thickness
1 - 3 mm

24 Products
NCJ-FI

NCJ5FI-H

3 pole XLR female receptacle with 1/4" mono jack without...

learn more
NCJ-FI-0

NCJ5FI-H-0

3 pole XLR female receptacle with 1/4" mono jack without...

learn more
NCJ-FI

NCJ5FI-S

3 pole XLR female receptacle with 1/4" mono jack without...

learn more
NCJ-FI-0

NCJ5FI-S-0

3 pole XLR female receptacle with 1/4" mono jack without...

learn more
NCJ-FI

NCJ5FI-V

3 pole XLR female receptacle with 1/4" mono jack without...

learn more
NCJ-FI-0

NCJ5FI-V-0

3 pole XLR female receptacle with 1/4" mono jack without...

learn more
NCJ-FI

NCJ6FI-H

3 pole XLR female receptacle with 1/4" stereo jack withou...

learn more
NCJ-FI-0

NCJ6FI-H-0

3 pole XLR female receptacle with 1/4" stereo jack withou...

learn more
NCJ-FI

NCJ6FI-S

3 pole XLR female receptacle with 1/4" stereo jack withou...

learn more
NCJ-FI-0

NCJ6FI-S-0

3 pole XLR female receptacle with 1/4" stereo jack withou...

learn more
NCJ-FI

NCJ6FI-V

3 pole XLR female receptacle with 1/4" stereo jack withou...

learn more
NCJ-FI-0

NCJ6FI-V-0

3 pole XLR female receptacle with 1/4" stereo jack withou...

learn more
NCJ-FI

NCJ9FI-H

3 pole XLR female receptacle with 1/4" switching stereo j...

learn more
NCJ-FI-0

NCJ9FI-H-0

3 pole XLR female receptacle with 1/4" switching stereo j...

learn more
NCJ-FI

NCJ9FI-S

3 pole XLR female receptacle with 1/4" switching stereo j...

learn more
NCJ-FI-0

NCJ9FI-S-0

3 pole XLR female receptacle with 1/4" switching stereo j...

learn more
NCJ-FI

NCJ9FI-V

3 pole XLR female receptacle with 1/4" switching stereo j...

learn more
NCJ-FI-0

NCJ9FI-V-0

3 pole XLR female receptacle with 1/4" switching stereo j...

learn more
NCJ-FI

NCJ10FI-H

3 pole XLR female receptacle with 1/4" switching stereo j...

learn more
NCJ-FI-0

NCJ10FI-H-0

3 pole XLR female receptacle with 1/4" switching stereo j...

learn more
NCJ-FI

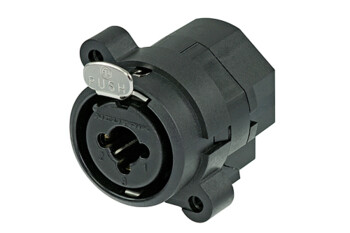

NCJ10FI-S

3 pole XLR female receptacle with 1/4" switching stereo j...

learn more
NCJ-FI-0

NCJ10FI-S-0

3 pole XLR female receptacle with 1/4" switching stereo j...

learn more
NCJ-FI

NCJ10FI-V

3 pole XLR female receptacle with 1/4" switching stereo j...

learn more
NCJ-FI-0

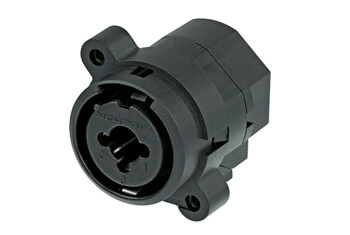

NCJ10FI-V-0

3 pole XLR female receptacle with 1/4" switching stereo j...

learn more
