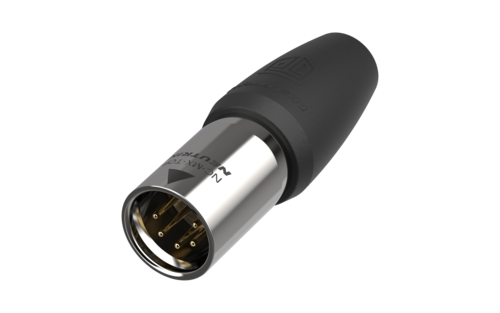

XLR_NC5MX1-TOP_persp front

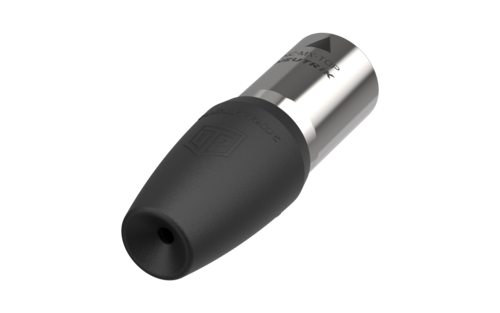

XLR_NC5MX1-TOP_persp back

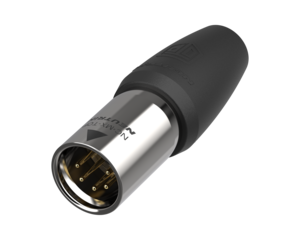

XLR_NC5MX1-TOP_persp front

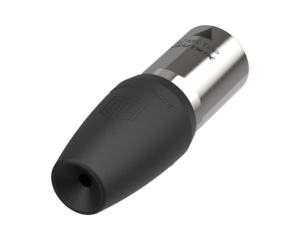

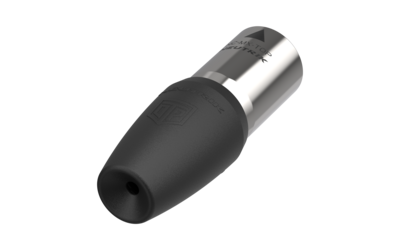

XLR_NC5MX1-TOP_persp back

NC5MX1-TOP

5 pole male cable connector, TRUE OUTDOOR PROTECTION (TOP), gold contacts

The X-TOP series is a "heavy-duty" XLR cable connector for outdoor use. Outdoor protected by mating with related cable/chassis connector of the XLR TOP range (IP65).

Gold contacts are standard.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Technical Information Accessories
Download Data Sheet

Features & Benefits

  • Heavy-duty sealed XLR connector range for harsh and demanding environment
  • Outdoor protection according to IP65
  • Uses high impact UV resistant materials
  • TOP-Approved in consideration of UL50E

Downloads

  • 3D Model NC5MX1-TOP (STP)
  • Drawing NC5MX1-TOP (PDF)
  • Drawing NC5MX1-TOP (DXF)
  • Assembly Instruction XLR TOP NC3MX1-TOP + NC5MX1-TOP

Technical Information

Product
Title NC5MX1-TOP
Connection Type XLR
Gender male
Electrical
Capacitance between contacts ≤ 4 pF
Contact resistance ≤ 3 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 7.5 A
Rated voltage < 50 V
Mechanical
Cable O.D. 5.0 - 8.0 mm
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize max. 1.0 mm²
Wiresize max. 18 AWG
Wiring Solder contacts
Locking device Latch lock
Material
Bushing UV-resistant rubber
Contact plating Gold (Au) over Nickel (Ni)
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 66)
Locking element Stainless steel
Shell Stainless steel
Strain relief Polyacetal
Environmental
Approvals UL
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Protection class IP65, UL50E enclosure type 4 (mated)
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C

Accessories

Dichtkappe_SCMX-TOP_persp front liegend_RGB_WEB
SCMX-TOP
