FIBERFOX-EBC-25--4CH-Front-open
neutrik / Products / FIBERFOX / FIBERFOX EBC25 (jam nut) / FIBERFOX EBC25 Cable / FIBERFOX EBC25 4CH Cable

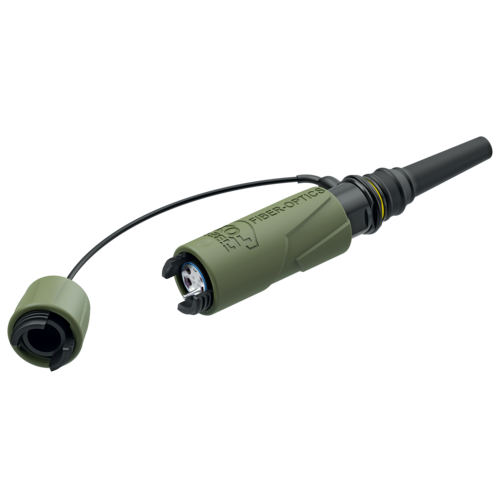

FIBERFOX EBC25 4CH Cable

Download Data Sheet

The FIBERFOX EBC25 4CH Cable connector is an expanded beam hermaphroditic connector suited for a vast array of applications, including lighting, network, PA, video, broadcast, defense & government, railway and more. The innovative design ensures its ability for deployment in the toughest environments where constant performance and total reliability are critical. The FIBERFOX EBC25 series has an improved temperature resistance of -46°C to 71°C. The connector’s dimensions fully comply with the specifications of the MIL-DTL-83526 standard and is compatible with other connectors which use this standard. Neutrik offers this extraordinary connector solution in singlemode and multimode.

Benefiting from the expanded beam technology and the precision optical alignment the system creates high immunity against dust, mud, liquids and other contaminations. The FIBERFOX hermaphroditic coupling eliminates the need for adaptors and female and male mating halves. The cable connector comes pre-assembled and is not available as a single component. The finished cable is available in standardized lengths and is packed either on a drum or airspool.


Features & Benefits
  • Available in multimode and singlemode
  • Heavy-duty, connectors IP68 protected
  • Higher temperature resistance (compared to EBC15): -46°C to 71°C (-51°F to 160°F)
  • Cables are directly extendable, no couplers required
  • Wear-free connectors, > 10’000 mating cycles without any maintenance
  • No special cleaning or measurement tools required
  • Dimensions fully comply with the specifications of the MIL-DTL-83526

Downloads
NKO4S_FG_Drawing_01
pdf - 93.22 KB
Drawing NKO4M3-FG
pdf - 98.38 KB
Drawing NKO4M3-FG
vnd.dwg - 271.89 KB
3D Model NKO4M3-FG
STEP - 5.92 MB
Assembly Instruction FIBERFOX Chassis Connector EBC25
pdf - 2.04 MB
NEUTRIK - FIBERFOX EXPANDED BEAM CONNECTOR - NF32 V7 202410
pdf - 12.82 MB
NDS30 - FIBERFOX 4CH
pdf - 185.37 KB

Technical Information

Product
Title FIBERFOX EBC25 4CH
Gender Hermaphroditic
Mechanical
Tensile Strength 1'800N
Compressive load 50'000N
Lifetime (typ.) 10‘000 mating cycles
Bump resistance 4000 bumps @ 40g acceleration
Vibrational sinusoidal 10-500Hz, 0.75 amplitude @ 10g acceleration
Material
Boot Rubber (EPDM)
Insert Steel
Shell Aluminium
Shell plating Hard anodize
Strain relief Brass
Environmental
Flammability UL 94 V-0
Protection class IP68 mated (15m for 24h acc. MIL-DTL-83526D Section 3.11.28)
and unmated (1m for 24h)
Compatibility MIL-DTL-83526
Temperature range -46°C to +71°C (-51°F to 160°F)
Optical
Insertion Loss Multimode Typ. 1.5dB per connection / Max. 2.5dB per connection
Return Loss Multimode N/A
Insertion Loss Singlemode Typ. 1.0 dB max. 2.0 dB per connection (according with IEC 61300-3-4)
Max. 2.5dB per connection (acc. with IEC 61300-3-34)
Return Loss Singlemode Typ. >32dB (according with IEC 61300-3-6)
Optical connector EBC25
Optical wiring ISO / IEC 11801
Mobile cable
Colour Black, shiny
Core diameter Multimode 50µm / Singlemode 9µm
Cladding diameter 125 µm
Comment PUR
minimal bending radius 5.8 cm
Number of fibers 4
Cable rentation Aramid yarn
Weight 23kg/km
Overal diameter Ø 5.8 mm
Accessories
data
FIBERFOX_NO2SJW-FG-BO_persp front_RGB_WEB !.png
FIBERFOX EBC25 4CH chassis

FIBERFOX EBC25 4CH chassis in jam-nut design

FIBERFOX 27610011 o adapters.png
FIBERFOX Adaptor BOX
NKO4M3-FG-0- FIBERFOX EBC25 4CH Cable Connector Assembly
FIBERFOX EBC25 4CH ordering options
Multimode order codeMultimode product codeDescriptionSinglemode order codeSinglemode product codeDescription
1036306NKO4M3-FG-0-005FIBERFOX EBC25 MM 4CH 5m OM3 Airspool NKO4S-FG-0-005FIBERFOX EBC25 SM 4CH 5m Airspool
1036308NKO4M3-FG-0-010FIBERFOX EBC25 MM 4CH 10m OM3 Airspool NKO4S-FG-0-010FIBERFOX EBC25 SM 4CH 10m Airspool
1036310NKO4M3-FG-0-020FIBERFOX EBC25 MM 4CH 20m OM3 Airspool NKO4S-FG-0-020FIBERFOX EBC25 SM 4CH 20m Airspool
1036316NKO4M3-FG-0-050FIBERFOX EBC25 MM 4CH 50m OM3 Airspool1036547NKO4S-FG-0-050FIBERFOX EBC25 SM 4CH 50m Airspool
1036320NKO4M3-FG-0-100FIBERFOX EBC25 MM 4CH 100m OM3 Airspool1036548NKO4S-FG-0-100FIBERFOX EBC25 SM 4CH 100m Airspool
1036326NKO4M3-FG-0-150FIBERFOX EBC25 MM 4CH 150m OM3 Airspool NKO4S-FG-0-150FIBERFOX EBC25 SM 4CH 150m Airspool
1036340NKO4M3-FG-2-050FIBERFOX EBC25 MM 4CH 50m OM3 Cablereel GT3101037437NKO4S-FG-2-050FIBERFOX EBC25 SM 4CH 50m Cablereel GT310
1036346NKO4M3-FG-2-100FIBERFOX EBC25 MM 4CH 100m OM3 Cablereel GT3101037438NKO4S-FG-2-100FIBERFOX EBC25 SM 4CH 100m Cablereel GT310
1036350NKO4M3-FG-2-150FIBERFOX EBC25 MM 4CH 150m OM3 Cablereel GT310 NKO4S-FG-2-150FIBERFOX EBC25 SM 4CH 150m Cablereel GT310
*Customized cable solutions with different length up on request





Market & Applications
  • Defense & Government
  • Railway
  • Oil & Gas Station
  • Video
  • PA Market
  • Lighting & Network
