NF2D-9
neutrik / Products / NF2D-9

NF2D-9

Download Data Sheet

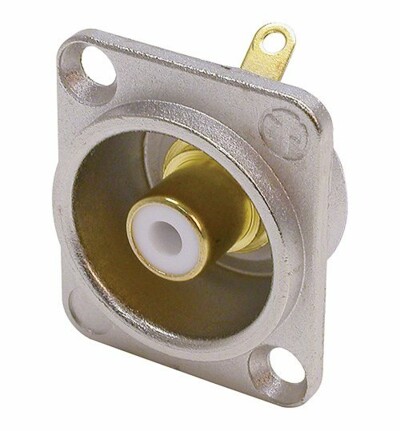

Phono socket in nickel D-shape housing, white isolation washers, solder version.

Features & Benefits
  • Precisely machined to our demanding quality standards
  • Gold plated contacts
Downloads
3-D NF2D
stp - 76.09 KB
nf2d-5
pdf - 56.08 KB
nf2d-6
dxf - 421.76 KB
02 Neutrik PG EN - Section Plugs & Jacks - 202110-V24
pdf - 6.12 MB

Technical Information

Product
Title NF2D-9
Connection Type RCA
Gender female
Electrical
Capacitance between contacts ≤ 9 pF
Contact resistance <10 mΩ
Dielectric strength 0,5 kVdc
Insulation resistance > 5 GΩ
Rated current per contact depends on mating connector / A
Rated voltage < 50 V
Mechanical
Lifetime > 2000 mating cycles
Wiresize
Wiring Solder contacts
Mounting direction Front mounting
Chassis shape D
Material
Contacts Brass (CuZn39Pb3)
Shell Zinc diecast (ZnAl4Cu1)
Contact plating 0.05 µm Au over 2 µm Ni
Environmental
Flammability UL 94 HB
Standard compliance IEC 601-14
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
Accessories
CAS-DUMMY

The dummyPLUG case includes a mixed assortment of dummyPLUGs

audio
DSS-*

Colored lettering plate for D-shape-connectors

MFD

M3 mounting frame

audio
NDP

The dummy PLUG NDP for Neutrik Phono sockets enables you to simplify cabling.

audio
SCDX

Hinged cover

SCCD-W

Spring-loaded sealing cover

SCD-W

Universal sealing cap
