NE8MC
neutrik / Products / NE8MC

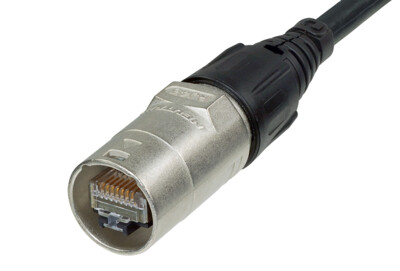

NE8MC

Download Data Sheet

*** DISCONTINUED ***
Direct replacement / successor: NE8MX

RJ45 cable connector carrier for pre-assembled RJ45 plugs consists of shell, fixing disk, chuck, bushing and boot. Packed with two cable protection elements for cable diameter either up to 5 mm or 8 mm. Cable connector carrier does not include a RJ45 plug.

The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution.

Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

Features & Benefits
  • The RJ45 system for harsh and demanding environment
  • Cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
  • Rugged diecast shell and unique chuck type strain relief
  • Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ 45 connectors
  • Allows assembly of preassembled conventional RJ45 cables
  • Accessories include color coded boots in 9 standard colors
Downloads
ne8mc
pdf - 100.38 KB
ne8mc-1
dxf - 1.89 MB
ethercon-cable-connector-ne8mc
pdf - 1.89 MB
etherCON Compatible RJ45 Connectors
pdf - 252.03 KB

Technical Information

Product
Title NE8MC
Gender male
Mechanical
Cable O.D. max. 8 mm 0.315'
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize
Material
Boot Polyamide (PA 6)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Strain relief Polyacetal (POM)
Environmental
Temperature range -30 °C to +80 °C
Accessories
audio
BSE-*

Colored bushings for NE8MC and NE8MC-B

audio
NE8FFX6-W

etherCON CAT6A feedthrough coupler for cable extensions

audio
HTX

Hand tool for tightening the bushing of the XLR X, XCC, FX-SPEC series and etherCON cable connector carrier series as well as the XLR XX and etherCON CAT6 series.
