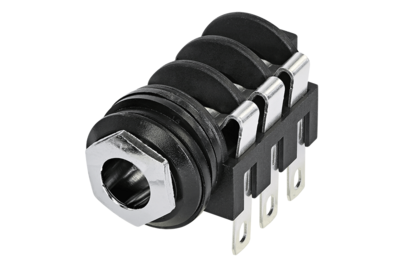

NMJ6HC-S
1/4" stereo jack, switched, with chrome ferrule and standard solder lugs, mounting nut included
Features & Benefits
- Wide body and extremely durable contacts
- Mates with all stereo A-gauge plugs acc. EIA RS-453 standard
Downloads
st-nmj6hc-s
pdf - 29.07 KB
st-nmj6hc-s
dxf - 154.69 KB
3d-file-nrj-nut-mc
stp - 65.68 KB
02 Neutrik PG EN - Section Plugs & Jacks - 202110-V24
pdf - 6.12 MB
jacks---circuits
pdf - 1.56 MB
Neut_PFAS_DoC_general_V2
pdf - 333.96 KB
Neut_REACH-251SVHC_General_2026_V1
pdf - 439.1 KB
Neutrik_DoC_California_Prop_65_02-2026_V01
pdf - 282.39 KB
Neutrik_general_TSCA_202601
pdf - 270.22 KB
Neutrik_RMI CMRT 6
vnd.openxmlformats-officedocument.spreadsheetml.sheet - 1.47 MB
Technical Information
| Product | |
|---|---|
| Title | NMJ6HC-S |
| Connection Type | Jack |
| Gender | female |
| Electrical | |
|---|---|
| Contact resistance | < 15 mΩ |
| Contact resistance | < 30 mΩ |
| Dielectric strength | 1 kVdc |
| Insulation resistance | ≥ 1 GΩ @ 500 V dc |
| Rated current per contact | 3 A |
| Rated current per contact | 0,50 A @ 50 V (Switch contact) |
| Switching contacts | 3 |
| Mechanical | |
|---|---|
| Insertion force | < 30 N |
| Withdrawal force | > 10 N |
| Lifetime | > 10000 mating cycles |
| Panel thickness | < 4.7 mm |
| Wiresize | |
| Wiring | Horizontal PCB mount |
| Locking device | Retention spring |
| Mounting direction | Rear mounting |
| Chassis shape | 11.4 mm |
| Material | |
|---|---|
| Nut | Zinc diecast (ZnAl4Cu1) |
| Washer | PA 6.6 15% GR |
| Contact plating | 2 µm Ag |
| Contacts | Bronze (CuSn6) |
| Shell | Polyamide (PA 6.6 30 % GR) UL 94 V0 |
| Environmental | |
|---|---|
| Standard compliance | EIA RS 453, IEC 60603-11 |
| Solderability | Complies with IEC 60068-2-20 |
| Temperature range | -25 °C to +70 °C |
