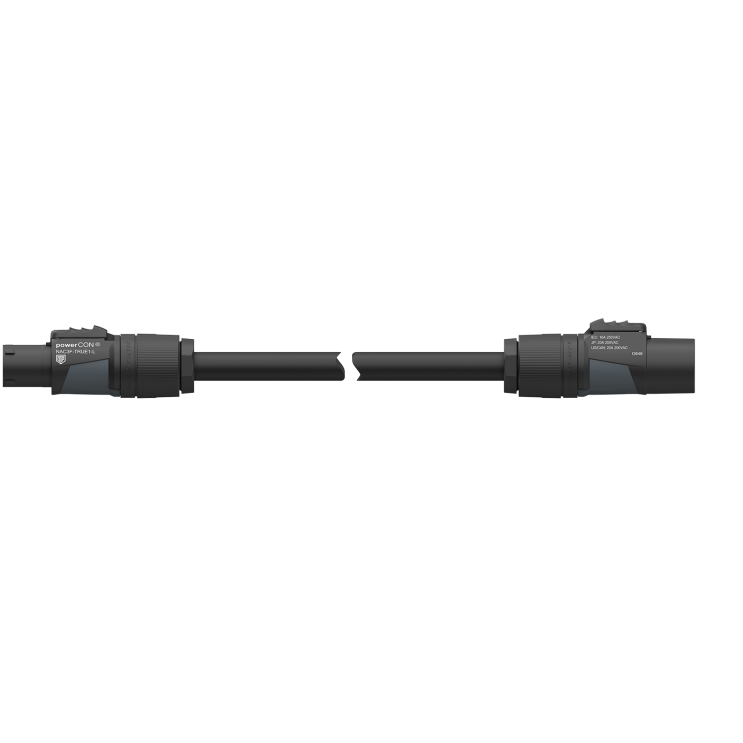

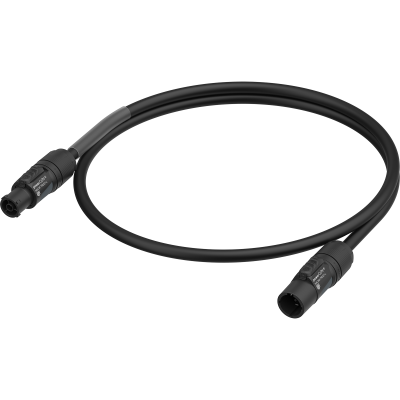

powerCON TRUE1 - 互联可装电源线
NEUTRIK® 户外电缆配有 powerCON® TRUE1® 和高质量 H07RN线缆，是舞台和活动的理想选择。
符合所有相关版本的 IEC 60799 标准。
特征和性能
- NKPH 电源线组件符合所有相关版本的 IEC 60799 标准
- powerCON® TRUE1® TOP 电源连接器符合 IEC 60320-1 认证
- 带遮断容量 (CBC) 的连接器
- IP65 and IP67 with NEUTRIK® powerCON® TRUE1®
- 欧洲制造商生产的高品质橡胶电缆
下载
Drawing_NKPH-A2A1_1038157
pdf - 698.84 KB
Drawing_NKPH-A2A1_1038157
dxf - 3.86 MB
NEUTRIK power cords premium series Broschure
pdf - 2.02 MB
BDA 686 V3 - Manual - Neutrik powerCON TRUE1 Cable - EN
pdf - 1.49 MB
BDA 676 V2 - CONTRIK Manual - CONTRIK powerCON TUE1 Kabel - 202502
pdf - 1.52 MB
CE Conformity declaration NKPH
pdf - 764.79 KB
EU Declaration of Conformity (PGD)
pdf - 370.15 KB
产品型号
| Article name | Details | Order code |
| NKPH03-A2A1-M0100 | 1 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1027564 |
| NKPH03-A2A1-M0150 | 1.5 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1038157 |
| NKPH03-A2A1-M0200 | 2 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1027565 |
| NKPH03-A2A1-M0300 | 3 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1038158 |
| NKPH03-A2A1-M0500 | 5 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1027566 |
| NKPH03-A2A1-M1000 | 10 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1027567 |
| NKPH03-A2A1-M1500 | 15 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1027568 |
| NKPH03-A2A1-M2000 | 20 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1027569 |
| NKPH04-A2A1-M0100 | 1 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1027570 |
| NKPH04-A2A1-M0150 | 1.5 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1038159 |
| NKPH04-A2A1-M0200 | 2 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1027571 |
| NKPH04-A2A1-M0300 | 3 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1036431 |
| NKPH04-A2A1-M0500 | 5 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1027572 |
| NKPH04-A2A1-M1000 | 10 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1027573 |
| NKPH04-A2A1-M1500 | 15 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1027574 |
| NKPH04-A2A1-M2000 | 20 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 | 1027575 |
电缆线部件详解
powerCON TRUE1 - Interconnection cordset rewirable
