SCNAC-MPX
neutrik / / SCNAC-MPX

SCNAC-MPX

Download Data Sheet

***停产 ***

请查阅新品: SCNAC-01

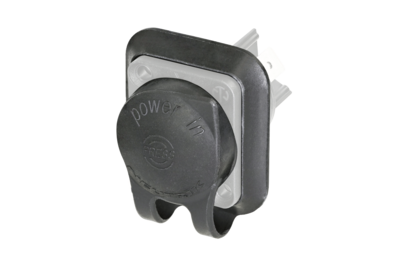

powerCON TRUE1公座连接器NAC3MPX产品橡胶密封盖,起到防尘防水的作用,等级为IP65

下载
Neutrik Product Guide - 06 powerCON and Circular Connectors PG EN 202210-V25
pdf - 7 MB
assembly-instruction---sealing-cover
pdf - 232.03 KB
ip-test-report
pdf - 1.61 MB
BDA 380 - powerCON TRUE 1 - NAC3MX-W
pdf - 4.87 MB
st-scnac-mpx
dxf - 383.81 KB
st-scnac-mpx-1
pdf - 48.66 KB
3-d-scnac-mpx
stp - 108.42 KB

技术信息

Product
产品 SCNAC-MPX
Material
材料 EPDM
Environmental
可燃性 UL94 HB
防护等级 IP65, UL50E enclosure type 4
