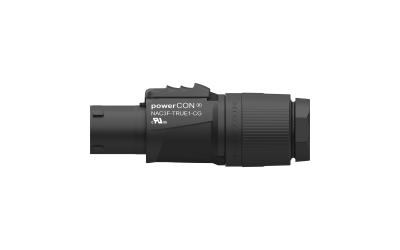

powerCON_NAC3F-TRUE1-CG_side left_RGB
powerCON_NAC3F-TRUE1-CG Schnitt V1_persp schnitt_RGB
powerCON_NAC3F-TRUE1-CG Explosion_persp explosion_RGB
1/5
neutrik / / powerCON® / powerCON® TRUE1 / powerCON® TRUE1 电缆连接器 / NAC3F-TRUE1-CG

NAC3F-TRUE1-CG

Download Data Sheet

The powerCON TRUE1 is a locking true mains connector for harsh and demanding applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.  The new cable entry achieves IP65, IP66 and IP67.

特征和性能
  • Heavy duty sealed power connector for harsh and demanding environment
  • Uses high impact UV-resistant materials
  • Lockable single phase connector
  • Extremely robust and reliable
  • ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1
  • UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1
  • IP65, IP66 and IP67 (mated)
  • True mains connector with breaking capacity (CBC)
  • Easy and reliable twist lock system
  • Unique NEUTRIK locking bushing and strain relief for cable diameters 8 mm to 13 mm (0.31– 0.51 inches)
Downloads
Drawing NAC3F-TRUE1-CG (PDF)
pdf - 756.53 KB
Drawing NAC3F-TRUE1-CG (DXF)
dxf - 4.13 MB
Drawing NACF-TRUE1-CG (STP)
stp - 8.23 MB
BDA 728 V1 - powerCON TRUE1 Cable Connector NAC3F-TRUE1-CG & NAC3M-TRUE1-CG
pdf - 6.24 MB
BDA 722 V1 - powerCON TRUE 1 - SAFETY NOTICE
pdf - 3.95 MB
Certificate_ENEC_40060344 (2025-05-27)
pdf - 309.68 KB
Certificate_CB_DE1-69777
pdf - 103.5 KB
Certificate_UL_UL-CA_2437324-2 (2025-06-16)
pdf - 359.9 KB
25-122_NEUTRIK_Broschuere_powerCON TRUE1 Cable Gland cable connectors_TXT
pdf - 2.17 MB

Technical Information

Product
Title NAC3F-TRUE1-CG
Product family powerCON® TRUE1
Electrical
Contact resistance ≤ 2 mΩ
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance > 1 GΩ (after damp and heat test IEC 68-2-30)
Number of electrical contacts 2 + PE
Rating Europe 16 A / 250 V AC according to EN IEC 60320-1
Rating America 20 A / 250 V AC according to UL 60320-1
20 A / 250 V AC according to CSA C22.2 No. 60320-1
Mechanical
Cable O.D. 8 - 13 mm (0.31 – 0.51 inches)
Lifetime > 5000 mating cycles
Wiresize (mm²) 1.5 - 2.5 mm²
Wiresize (AWG) 12 AWG
Material
Contact plating 2 μm Ag
Locking element Polyamide (PA 66)
Contacts Copper Alloy
Insert Polyamide (PA 66)
Shell Polyamide (PA 66)
Strain relief Polyketon
Environmental
Flammability UL 94 V-0
Protection class IP65, IP66 and IP67 (mated )
UV resistance F1 rated material withstands UV exposure
Operating temperature range -30°C to +80°C according to IEC 61984
-5°C to +40°C according to IEC 60320-1
Accessories
HTLACB

用于紧固powerCON TRUE1 TOP、FXX和speakON FXX系列的套管的手动工具。

HTLACA View 2.png
HTLACA

用于紧固powerCON TRUE1 TOP、FXX和speakON FXX系列的套管的手动工具

powerCON_SCF-TRUE1 TOP_persp front_RGB_WEB.png
SCF-TRUE1-01

牢固耐用的密封盖(母),采用人体工程学设计,适用于 powerCON TRUE1 TOP 电缆连接器

Dichtkappe_SCNAC-FX_persp front liegend_RGB_WEB.png
SCNAC-FX

橡胶密封盖,保护powerCON TRUE1 TOP NAC3FX-W-TOP免受灰尘和水侵害,达到IP65等级
